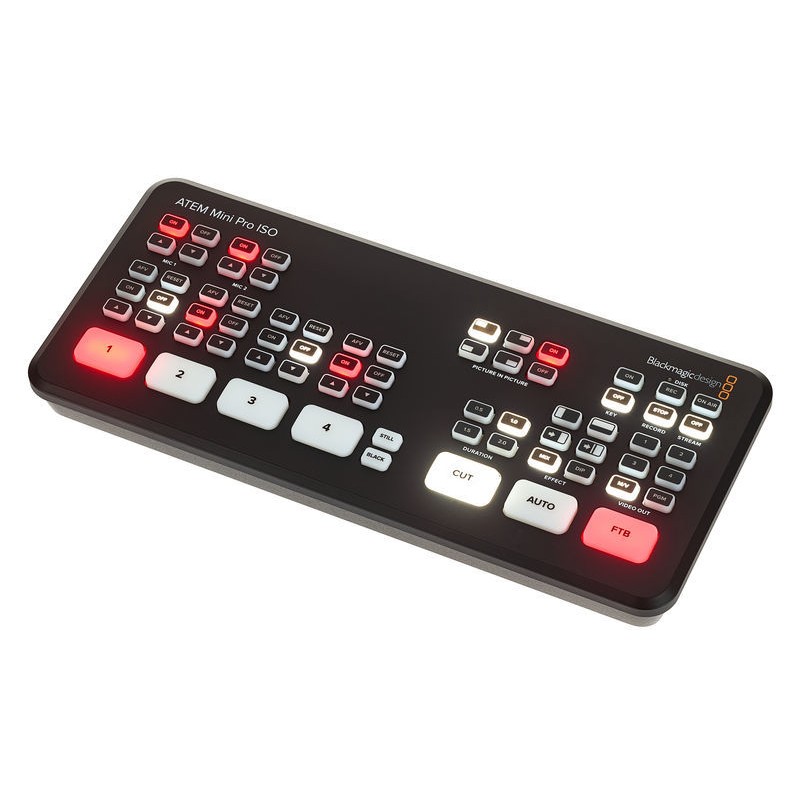

Blackmagic Design ATEM Mini Pro ISO

ATEM Mini Pro si configura in un attimo ed è facile da usare. Offre 4 ingressi HDMI con conversione di standard, un’uscita webcam USB e un’uscita HDMI, un mixer audio Fairlight con EQ e dinamica, DVE per immagine nell’immagine, transizioni con effetti, chiave cromatica per green screen, archivio di 20 fotogrammi per titoli, e ATEM Software Control. ATEM Mini Pro permette di registrare in H.264 direttamente sulle unità flash USB e di trasmettere in streaming tramite ethernet sulle piattaforme come YouTube Live. Offre anche multiview per 4 camere, multimedia, anteprima e programma, inclusi indicatori di registrazione, streaming e audio.

• With USB webcam output, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chromakeyer, capacity for 20 stills for titles and much more
• In addition to the basic functionality, allows recordings on USB drives in H.264 format
• Integrated hardware streaming engine for YouTube Live, Facebook, Twitch and others
• Multiviewer for viewing all cameras on one monitor
• Can also record five streams including all signal inputs as clean feeds for editing
• Generates a DaVinci project file for fast cutting and creates a new link to the Blackmagic RAW file for Ultra HD finishing
• Video inputs: 4x HDMI type A 10-bit HD (switchable, 2 embedded audio channels)
• Video outputs: 2
• AUX outputs: 1
• Audio inputs: 2x 3.5 mm stereo mini jacks
• No audio outputs, only embedded audio
• Resync on all four HDMI inputs
• Frame rate and format converter on all 4 HDMI inputs
• HDMI program outputs: 1
• Ethernet: Supports 10/100/1000 BaseT for live streaming, software control, software updates and connecting a control panel to the mixer directly or via network
• Computer interface: 1x USB port type C 3.1 1st generation for recording on external hard drives as well as for webcam output, software control, software updates and for connecting a control panel
• HD video input standards: 720p/50; 720p/59,94; 720p/60; 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60;1080i/50; 1080i/59,94; 1080i/60
• HD video output standards: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
• Video standards for streaming: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
• Video sampling rate: 4:2:2 YUV
• Colour accuracy: 10-bit
• Colour spaces: Rec 709
• HDMI input resolution from computers: 1280 x 720p 50 Hz, 59.94 Hz and 60 Hz; 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz; 1920 x 1080i 50, 59.94 and 60 Hz
• Colour space conversion: Hardware-based in real time
• Upstream keyers: 1
• Downstream keyers: 1
• Advanced Chroma keyers: 1
• Linear / Luma keyers: 2
• Transition keyer: DVE only
• Total number of levels: 5
• Pattern Generators: 1
• Colour Generators: 2
• DVE with borders and shadows: 1
• Audio mixer: 6 Inputs with 2 channel mixers each
• Channel-by-channel preset for switching audio-follows-video on or off, as well as separate gain control for each channel
• Level and peak level measurement
• Fairlight audio features: Compressor, gate, limiter, parametric 6-band EQ, main gain control
• Analogue input: Unbalanced stereo
• Analogue input delay: Up to 8 frames
• Input impedance: 1.8 k
• Maximum input level: +6 dBV
• Direct streaming: Supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP)
• Includes ATEM software control panel for Mac Mojave 10.14, Mac Catalina 10.15 or higher and for Windows 10 only in 64 bit
• Power consumption: 36 W
• Dimensions: 238 x 104 x 35 mm
• Weight: 550 g
• Includes external 12V DC power adapter with plug adapters for all countries
